Projection screens / Screen material

Acoustic NanoMesh: a woven surface for speakers behind the screen.

An acoustically transparent screen lets the centre and front channels sit where the picture is, behind the fabric. Acoustic NanoMesh 4K is Big Shine's woven version: a fine, dense weave chosen to pass sound with little loss while holding a 4K image without moiré.

Ask about a NanoMesh screen See the test data

Screen size, frame and fabric are confirmed against the room and the speaker layout. No pricing is published; enquire for a quote.

Boardroom projection screen assembly A fixed architectural room drawing whose semantic regions move apart and return to the assembled view.
Screen study shown for orientation; fabric close-ups below
01 / The weave

Woven, not punched.

Most acoustically transparent screens are perforated: pin-holes punched through a vinyl surface, which limits how many openings the material can carry before the picture suffers. Acoustic NanoMesh is woven from an ultra-fine yarn, so the openings are the gaps in the weave itself: far smaller and far denser, around 2000 per square inch against a few hundred for a punched surface.

The weave pitch is chosen to sit below the pixel pitch of a 4K image at normal screen sizes. That is what keeps moiré, the banding that appears when a fine pattern in the picture lines up with a regular pattern in the fabric, from showing.

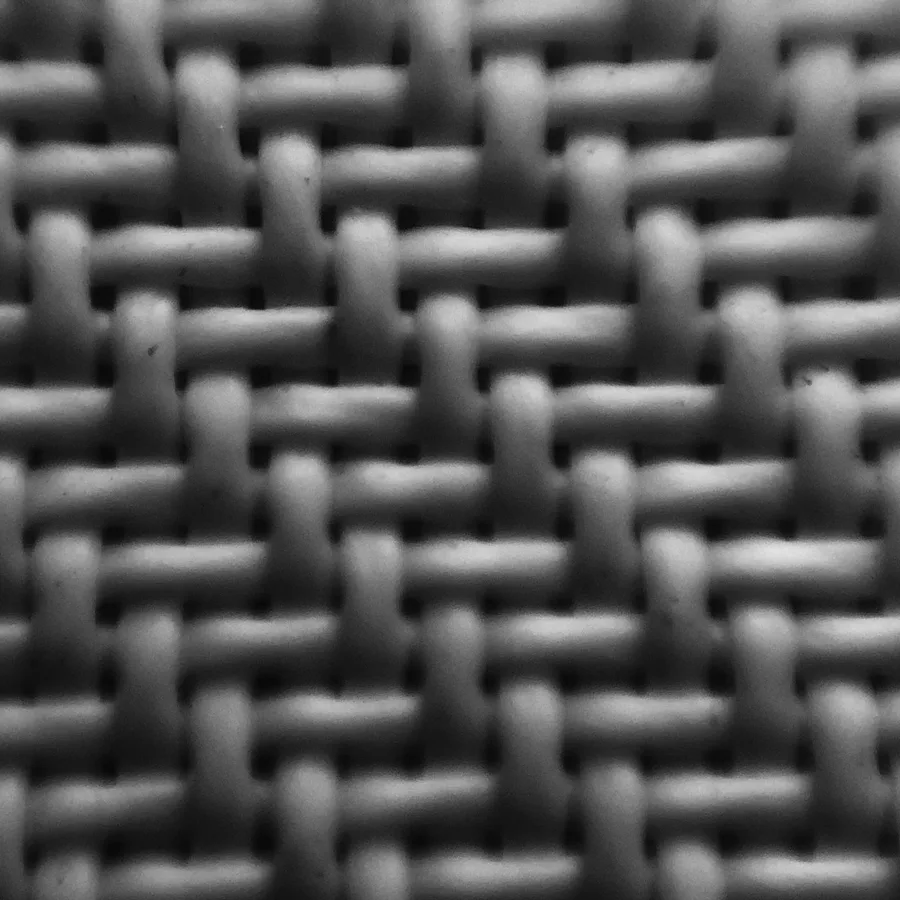

Close-up of the Acoustic NanoMesh weave structure
Weave structure of the Acoustic NanoMesh.
Example of a moiré pattern: dark and light bands across an image
Moiré, the effect a coarse or regular weave can add to striped or fine-patterned images.
02 / Audio transparency

Big Shine's transparency test.

Audio transparency test: original audio versus through the Acoustic NanoMesh Frequency response from 1 to 20 kHz. Original audio averages 95.9 dB; through the Acoustic NanoMesh it averages 94.1 dB. 60 dB 70 dB 80 dB 90 dB 100 dB 110 dB 120 dB 1k5k10k15k20k Frequency (kHz) Sound pressure level (dB) avg 95.9 dB Original audio: 1.00 kHz, 85 dB Original audio: 1.24 kHz, 89 dB Original audio: 1.48 kHz, 90 dB Original audio: 1.72 kHz, 91 dB Original audio: 1.96 kHz, 91 dB Original audio: 2.20 kHz, 95 dB Original audio: 2.44 kHz, 97 dB Original audio: 2.68 kHz, 97 dB Original audio: 2.92 kHz, 97 dB Original audio: 3.16 kHz, 98 dB Original audio: 3.41 kHz, 98 dB Original audio: 3.65 kHz, 96 dB Original audio: 3.89 kHz, 92 dB Original audio: 4.13 kHz, 97 dB Original audio: 4.37 kHz, 98 dB Original audio: 4.61 kHz, 94 dB Original audio: 4.85 kHz, 97 dB Original audio: 5.09 kHz, 100 dB Original audio: 5.33 kHz, 99 dB Original audio: 5.57 kHz, 97 dB Original audio: 5.81 kHz, 96 dB Original audio: 6.05 kHz, 97 dB Original audio: 6.29 kHz, 93 dB Original audio: 6.53 kHz, 94 dB Original audio: 6.77 kHz, 90 dB Original audio: 7.01 kHz, 94 dB Original audio: 7.25 kHz, 93 dB Original audio: 7.49 kHz, 94 dB Original audio: 7.73 kHz, 97 dB Original audio: 7.97 kHz, 97 dB Original audio: 8.22 kHz, 98 dB Original audio: 8.46 kHz, 93 dB Original audio: 8.70 kHz, 96 dB Original audio: 8.94 kHz, 99 dB Original audio: 9.18 kHz, 103 dB Original audio: 9.42 kHz, 106 dB Original audio: 9.66 kHz, 105 dB Original audio: 9.90 kHz, 103 dB Original audio: 10.14 kHz, 99 dB Original audio: 10.38 kHz, 99 dB Original audio: 10.62 kHz, 94 dB Original audio: 10.86 kHz, 91 dB Original audio: 11.10 kHz, 90 dB Original audio: 11.34 kHz, 94 dB Original audio: 11.58 kHz, 96 dB Original audio: 11.82 kHz, 96 dB Original audio: 12.06 kHz, 100 dB Original audio: 12.30 kHz, 95 dB Original audio: 12.54 kHz, 100 dB Original audio: 12.78 kHz, 100 dB Original audio: 13.03 kHz, 99 dB Original audio: 13.27 kHz, 94 dB Original audio: 13.51 kHz, 95 dB Original audio: 13.75 kHz, 99 dB Original audio: 13.99 kHz, 98 dB Original audio: 14.23 kHz, 100 dB Original audio: 14.47 kHz, 96 dB Original audio: 14.71 kHz, 96 dB Original audio: 14.95 kHz, 91 dB Original audio: 15.19 kHz, 95 dB Original audio: 15.43 kHz, 93 dB Original audio: 15.67 kHz, 95 dB Original audio: 15.91 kHz, 98 dB Original audio: 16.15 kHz, 103 dB Original audio: 16.39 kHz, 98 dB Original audio: 16.63 kHz, 101 dB Original audio: 16.87 kHz, 103 dB Original audio: 17.11 kHz, 102 dB Original audio: 17.35 kHz, 106 dB Original audio: 17.59 kHz, 108 dB Original audio: 17.84 kHz, 107 dB Original audio: 18.08 kHz, 101 dB Original audio: 18.32 kHz, 99 dB Original audio: 18.56 kHz, 96 dB Original audio: 18.80 kHz, 89 dB Original audio: 19.04 kHz, 83 dB Original audio: 19.28 kHz, 77 dB Original audio: 19.52 kHz, 71 dB Original audio: 19.76 kHz, 70 dB Original audio: 20.00 kHz, 70 dB avg 94.1 dB Through Acoustic NanoMesh: 1.00 kHz, 84 dB Through Acoustic NanoMesh: 1.24 kHz, 86 dB Through Acoustic NanoMesh: 1.48 kHz, 88 dB Through Acoustic NanoMesh: 1.72 kHz, 89 dB Through Acoustic NanoMesh: 1.96 kHz, 89 dB Through Acoustic NanoMesh: 2.20 kHz, 93 dB Through Acoustic NanoMesh: 2.44 kHz, 94 dB Through Acoustic NanoMesh: 2.68 kHz, 94 dB Through Acoustic NanoMesh: 2.92 kHz, 95 dB Through Acoustic NanoMesh: 3.16 kHz, 97 dB Through Acoustic NanoMesh: 3.41 kHz, 96 dB Through Acoustic NanoMesh: 3.65 kHz, 94 dB Through Acoustic NanoMesh: 3.89 kHz, 91 dB Through Acoustic NanoMesh: 4.13 kHz, 94 dB Through Acoustic NanoMesh: 4.37 kHz, 97 dB Through Acoustic NanoMesh: 4.61 kHz, 92 dB Through Acoustic NanoMesh: 4.85 kHz, 96 dB Through Acoustic NanoMesh: 5.09 kHz, 99 dB Through Acoustic NanoMesh: 5.33 kHz, 98 dB Through Acoustic NanoMesh: 5.57 kHz, 95 dB Through Acoustic NanoMesh: 5.81 kHz, 95 dB Through Acoustic NanoMesh: 6.05 kHz, 96 dB Through Acoustic NanoMesh: 6.29 kHz, 92 dB Through Acoustic NanoMesh: 6.53 kHz, 92 dB Through Acoustic NanoMesh: 6.77 kHz, 88 dB Through Acoustic NanoMesh: 7.01 kHz, 93 dB Through Acoustic NanoMesh: 7.25 kHz, 91 dB Through Acoustic NanoMesh: 7.49 kHz, 93 dB Through Acoustic NanoMesh: 7.73 kHz, 94 dB Through Acoustic NanoMesh: 7.97 kHz, 95 dB Through Acoustic NanoMesh: 8.22 kHz, 96 dB Through Acoustic NanoMesh: 8.46 kHz, 92 dB Through Acoustic NanoMesh: 8.70 kHz, 95 dB Through Acoustic NanoMesh: 8.94 kHz, 97 dB Through Acoustic NanoMesh: 9.18 kHz, 102 dB Through Acoustic NanoMesh: 9.42 kHz, 104 dB Through Acoustic NanoMesh: 9.66 kHz, 104 dB Through Acoustic NanoMesh: 9.90 kHz, 101 dB Through Acoustic NanoMesh: 10.14 kHz, 97 dB Through Acoustic NanoMesh: 10.38 kHz, 96 dB Through Acoustic NanoMesh: 10.62 kHz, 93 dB Through Acoustic NanoMesh: 10.86 kHz, 90 dB Through Acoustic NanoMesh: 11.10 kHz, 87 dB Through Acoustic NanoMesh: 11.34 kHz, 92 dB Through Acoustic NanoMesh: 11.58 kHz, 95 dB Through Acoustic NanoMesh: 11.82 kHz, 94 dB Through Acoustic NanoMesh: 12.06 kHz, 98 dB Through Acoustic NanoMesh: 12.30 kHz, 94 dB Through Acoustic NanoMesh: 12.54 kHz, 99 dB Through Acoustic NanoMesh: 12.78 kHz, 97 dB Through Acoustic NanoMesh: 13.03 kHz, 96 dB Through Acoustic NanoMesh: 13.27 kHz, 93 dB Through Acoustic NanoMesh: 13.51 kHz, 92 dB Through Acoustic NanoMesh: 13.75 kHz, 98 dB Through Acoustic NanoMesh: 13.99 kHz, 96 dB Through Acoustic NanoMesh: 14.23 kHz, 98 dB Through Acoustic NanoMesh: 14.47 kHz, 93 dB Through Acoustic NanoMesh: 14.71 kHz, 93 dB Through Acoustic NanoMesh: 14.95 kHz, 89 dB Through Acoustic NanoMesh: 15.19 kHz, 93 dB Through Acoustic NanoMesh: 15.43 kHz, 92 dB Through Acoustic NanoMesh: 15.67 kHz, 94 dB Through Acoustic NanoMesh: 15.91 kHz, 96 dB Through Acoustic NanoMesh: 16.15 kHz, 100 dB Through Acoustic NanoMesh: 16.39 kHz, 95 dB Through Acoustic NanoMesh: 16.63 kHz, 99 dB Through Acoustic NanoMesh: 16.87 kHz, 101 dB Through Acoustic NanoMesh: 17.11 kHz, 99 dB Through Acoustic NanoMesh: 17.35 kHz, 104 dB Through Acoustic NanoMesh: 17.59 kHz, 107 dB Through Acoustic NanoMesh: 17.84 kHz, 104 dB Through Acoustic NanoMesh: 18.08 kHz, 100 dB Through Acoustic NanoMesh: 18.32 kHz, 98 dB Through Acoustic NanoMesh: 18.56 kHz, 93 dB Through Acoustic NanoMesh: 18.80 kHz, 88 dB Through Acoustic NanoMesh: 19.04 kHz, 81 dB Through Acoustic NanoMesh: 19.28 kHz, 76 dB Through Acoustic NanoMesh: 19.52 kHz, 69 dB Through Acoustic NanoMesh: 19.76 kHz, 68 dB Through Acoustic NanoMesh: 20.00 kHz, 67 dB Original audio Through Acoustic NanoMesh
Big Shine's audio transparency test: original audio versus the same signal through the Acoustic NanoMesh, 1–20 kHz. Hover a point for its reading.

Across the 1–20 kHz sweep in this test, the averaged level through the fabric was 98.07% of the original signal's, a drop of about 1.9 dB on average. That is what makes it practical to put the centre channel directly behind the picture rather than above or below it.

03 / Under magnification

Perforation density, side by side.

The same magnification for each sample, with a ten-cent coin for scale.

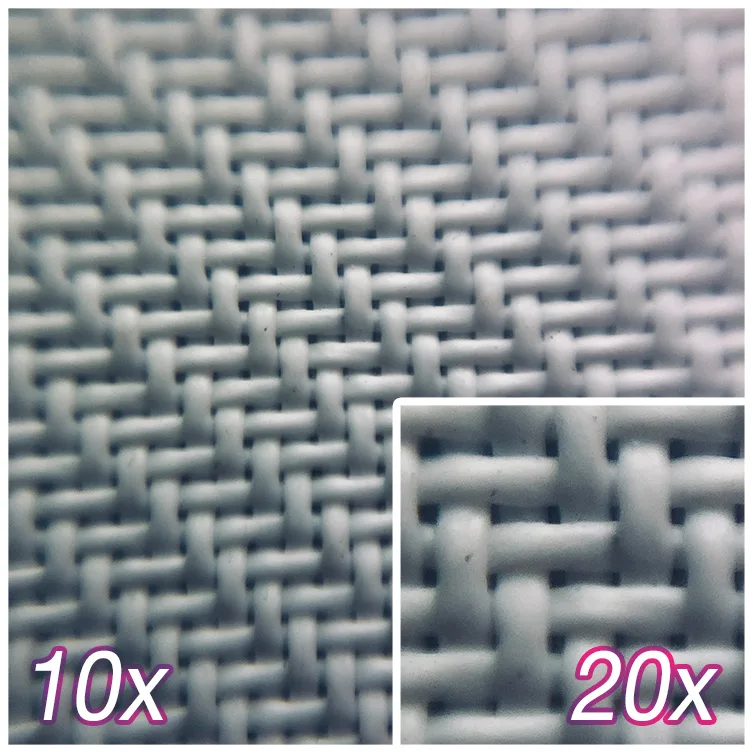

  • Close-up of the Acoustic NanoMesh woven surface

    Acoustic NanoMesh

    Big Shine, woven

    2000 perforations / in²

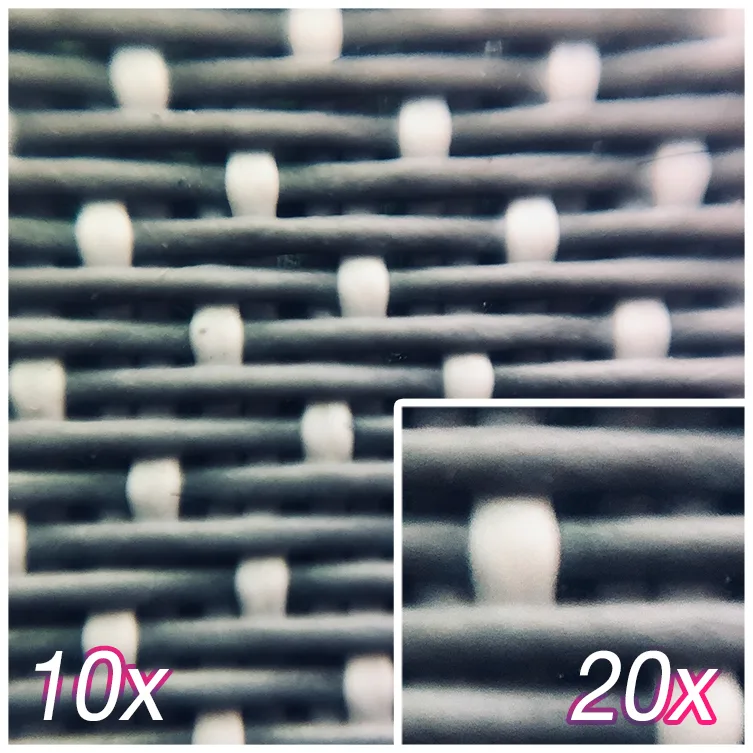

  • Close-up of a typical woven acoustic screen fabric with a coarser weave

    Woven fabric

    Typical alternative

    600 perforations / in²

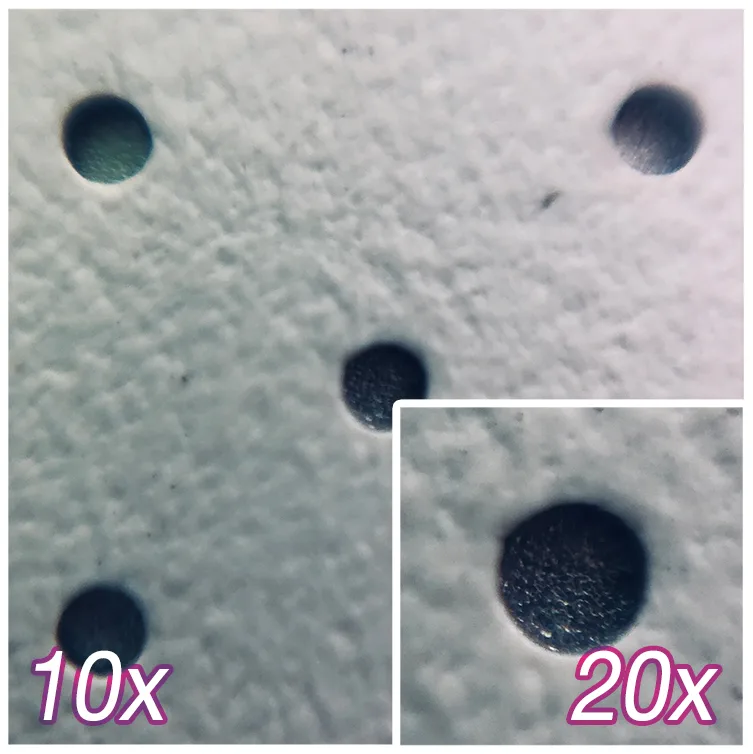

  • Close-up of a pin-hole perforated projection screen surface

    Perforated vinyl

    Typical alternative

    200 perforations / in²

  • A ten-cent coin photographed at the same magnification as the fabric samples

    Size reference

    Singapore 10-cent coin

    Same magnification

04 / Specifications

Acoustic NanoMesh 4K White

Basic

Gain
1.0
Viewing angle
130°
Thickness
0.62 mm (±0.02 mm)
Projection type
Front only
Perforation type
Woven
Perforation density
2000 / in²

Features

4K ready
Yes
3D enhanced
No
High contrast
No
Enhanced colour rendering
No
Washable
No
Short-throw compatible
Yes
Ambient light rejecting
No
Acoustically transparent
Yes

Gain 1.0 means the fabric reflects like a matte white reference; the screen gain guide explains how to read that against the seating plan. The fabric is front-projection only and is not washable; ask about care before cleaning it.

05 / Available on

Fixed frame and tab-tensioned screens.

Acoustic NanoMesh 4K is supplied on Big Shine's fixed frame screens and the Grand tab-tension motorised screen. Both hold the fabric flat, which matters more for an acoustically transparent weave than for a solid surface. A fabric-only order for another frame is a custom item; ask before assuming it fits.

Speaker placement is part of the screen brief: the drivers should sit a short distance behind the fabric, on axis with the seats, with the frame depth and any wall cavity checked before the screen size is fixed.
